HondaPartsHero · 11-16-2006, 02:34 AM

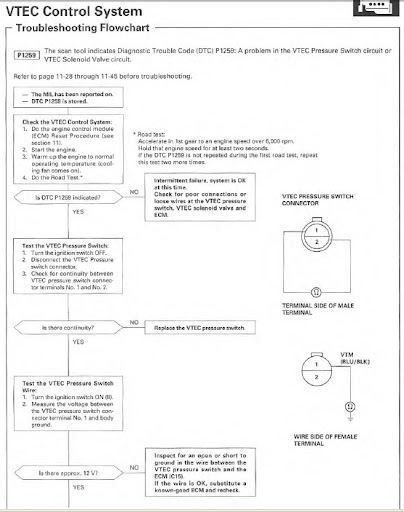

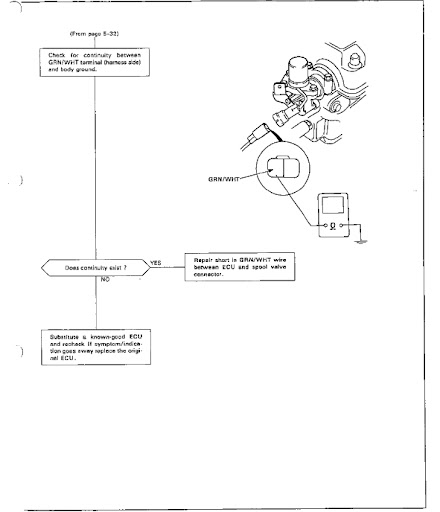

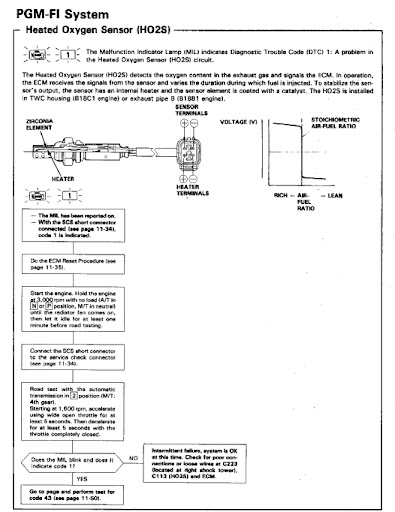

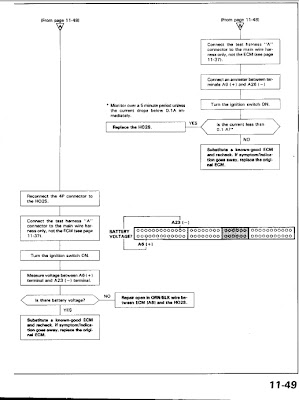

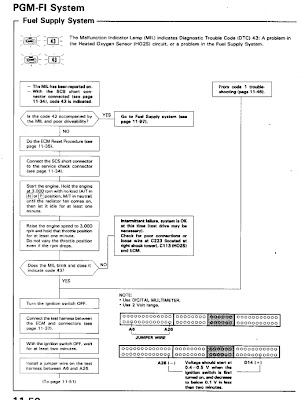

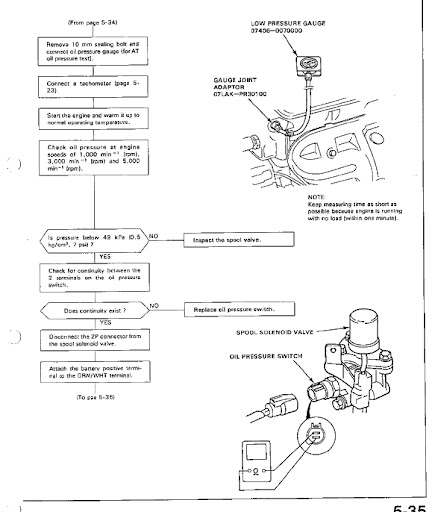

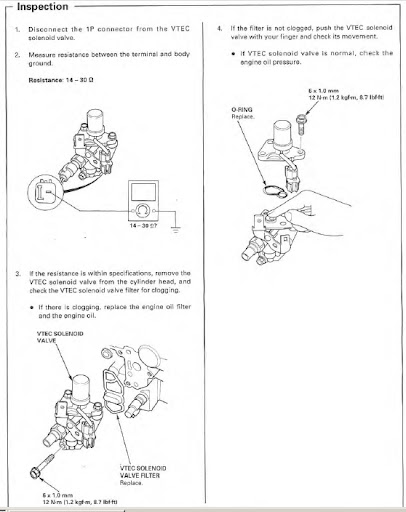

Courtesy of Honda Motors:

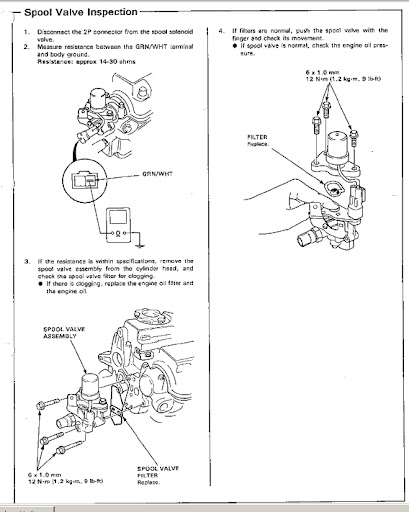

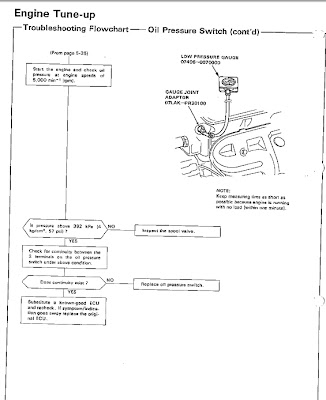

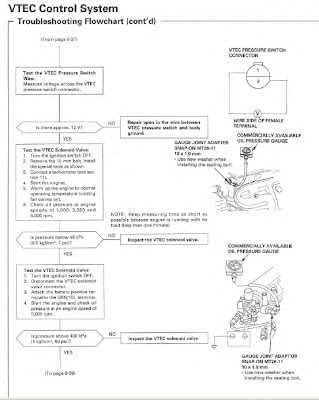

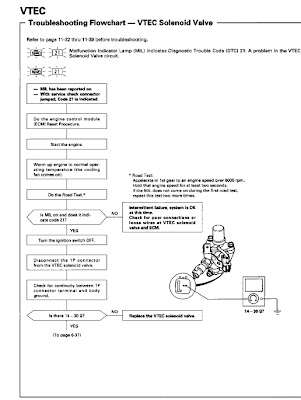

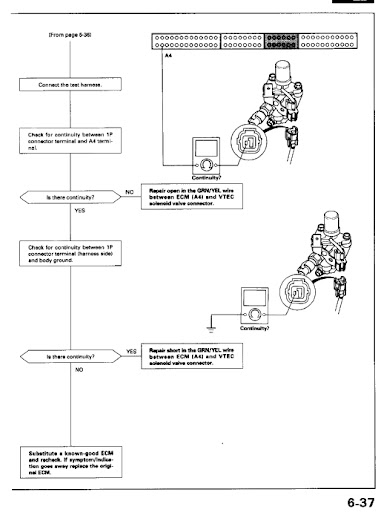

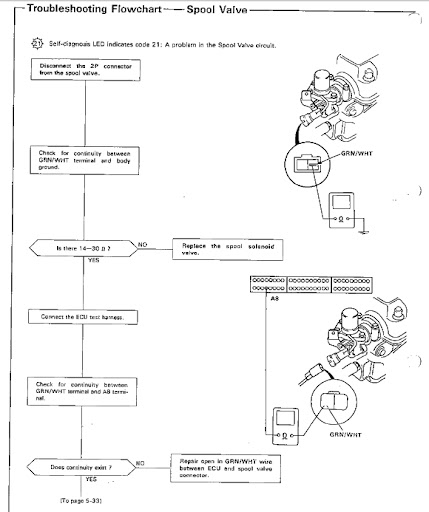

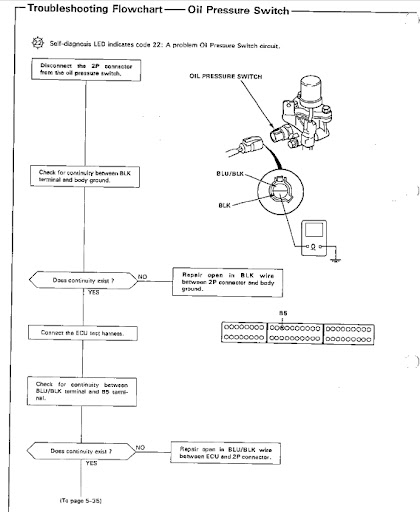

OBD0

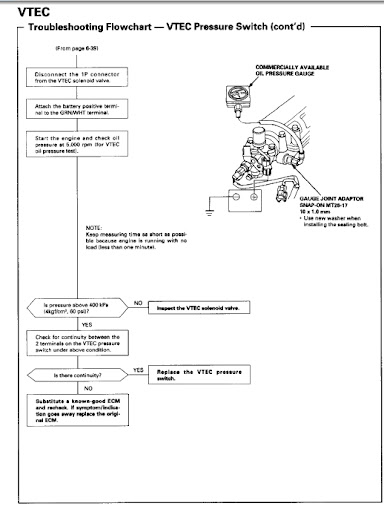

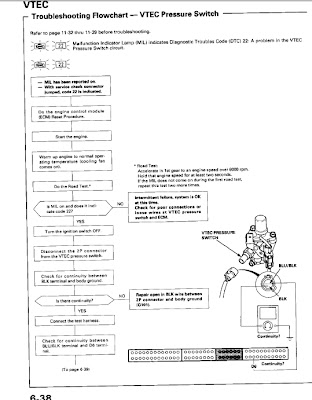

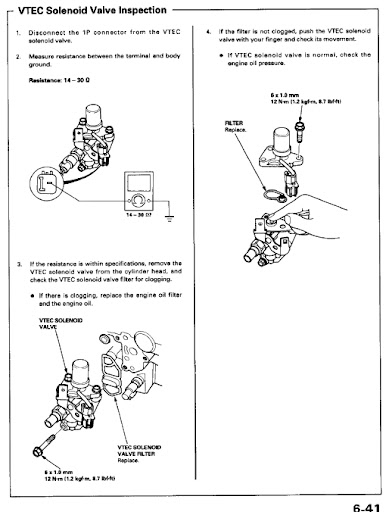

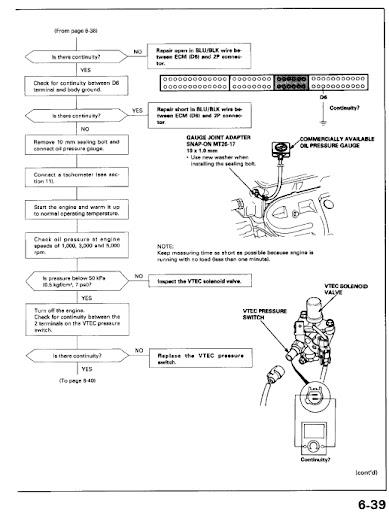

OBD1

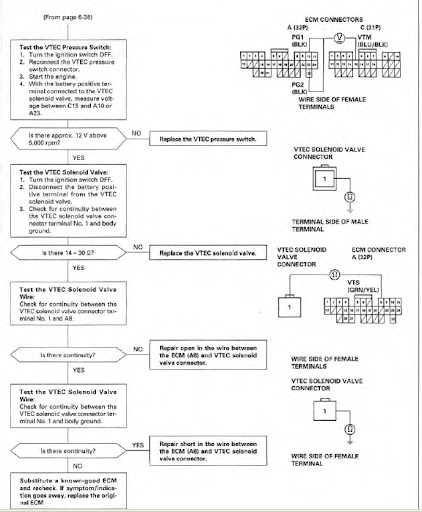

OBD2

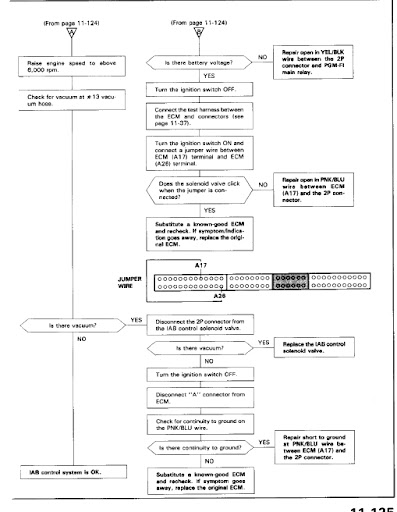

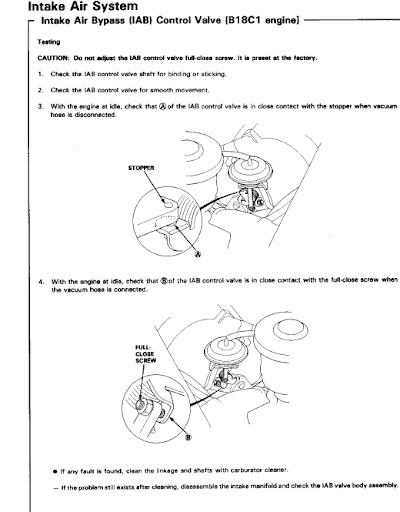

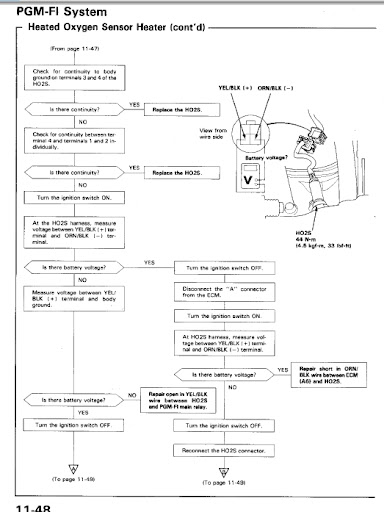

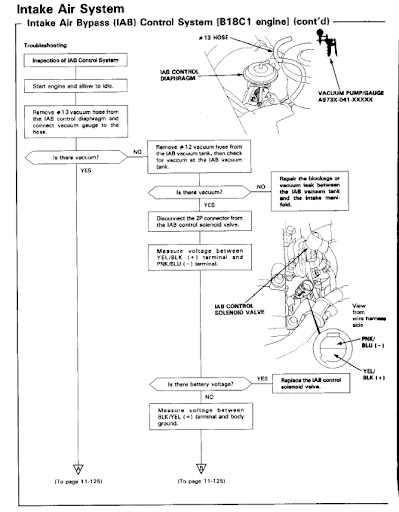

OBD1 IAB TROUBLE SHOOTING

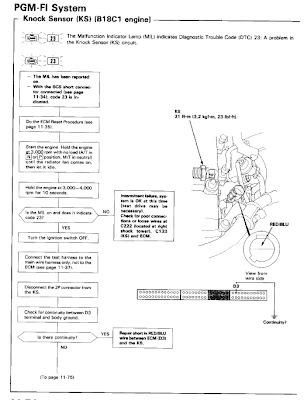

OBD1 KNOCK SENSOR

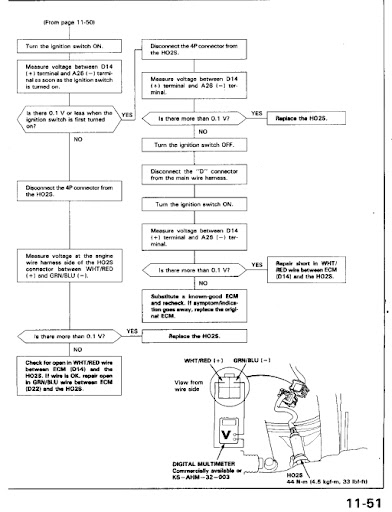

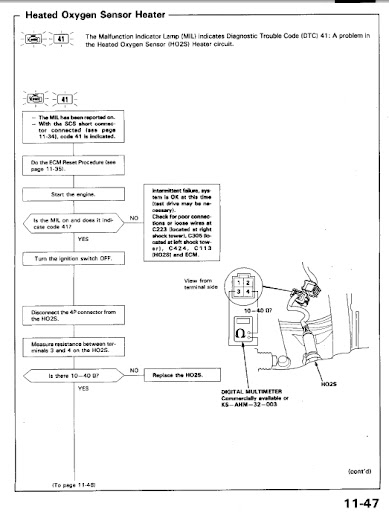

OBD1 Oxygen Sensor

This ad is not displayed to registered or logged-in members.
Register your free account today and become a member on Honda-Tech!

EE_Chris · 11-16-2006, 06:24 AM

Look at that - a systematic way of figuring out why VTEC doesn't work. After reading so many of these threads around here, I was beginning to think visual inspection followed by randomly replacing parts and hoping for the best was how it was done.

Good post.

HondaPartsHero · 11-16-2006, 12:24 PM

let me know if people like this and I'll post OBD2 shots as well

EE_Chris · 11-16-2006, 02:35 PM

I like it. I got it bookmarked. Do the OBD2 stuff so we have a central place for both gens.

HondaPartsHero · 11-18-2006, 10:43 AM

added OBD2

b18_crx · 01-10-2007, 04:45 PM

subscribed

Blown90hatcH · 01-10-2007, 05:15 PM

I guess I will toss it out there as well for the JDM owners that do not have Vtec Pressure Switches and want to run USDM ECU's. Splice the Vtec Solenoid wire (Green wire with a yellow stripe) and Vtec Pressure Switch wire (Blue wire with a black stripe) together and this will fix it.

Chem Geek · 01-12-2007, 07:12 AM

I'd love to see the IAB sheets for OBDI if you have them. Otherwise it's great!

Azn Kenny · 01-12-2007, 10:43 AM

Nice find.

HondaPartsHero · 01-12-2007, 03:36 PM

yeah I can get it up later for the IABS

HondaPartsHero · 01-13-2007, 07:43 PM

added IAB trouble shooting, OBD1

Also is it possible to change the title to "My VTEC/IAB doesn't work" to reflect the updates?

g2_teg_ · 04-02-2007, 06:49 PM

will this be needed at all if im not getting a CEL?

MHBb16CRX · 06-02-2007, 07:49 AM

OBD0 doesn't work.

HondaPartsHero · 07-07-2007, 08:20 AM

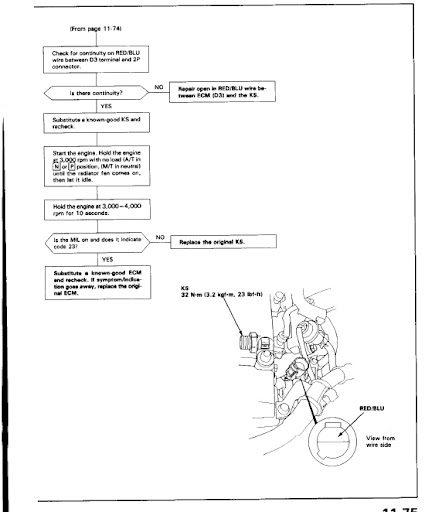

added knock sensor and fixed the images i guess we todd did isn't up anymore, let me know if anyone wants anymore

Mattb16teg · 04-14-2008, 02:10 PM

Wow Great! : )
Just needed to post so I can have this to look through when I get home.

travis-b16a2-eg · 04-14-2008, 06:45 PM

bump this, very useful... if you don't have a manual.

Nachos · 10-03-2008, 11:53 AM

very useful, Thanks! I just got a new multi-meter. so test the soleniod do I use DC or AC settings? is there a general rule of thumb where if there's X amount of wires then its a AC/DC?
Thanks! still new at this

racebucket_eg · 10-13-2008, 09:17 AM

Very helpful. Thanks

What is the manual referring to when they say "connect the ECU test harness"??

zccrx · 06-01-2009, 10:15 PM

when was the last time this thread was checked the pics are not loading.

DjChuckey · 06-02-2009, 08:52 PM

Quote:

Originally Posted by zccrx

when was the last time this thread was checked the pics are not loading.

x2 just got car running again today and would really like to know how to fix VTEC.

Fairburn · 09-21-2009, 03:52 PM

bump for getting the pictures fixed

HondaPartsHero · 09-26-2009, 09:03 AM

sorry I'll work on the size of the photos, google images shrunk them somehow

Marcpb443 · 09-26-2009, 09:53 AM

Good FAQ.

Fairburn · 09-27-2009, 10:35 AM

pics are exactly what I need except they are too small for me to read
